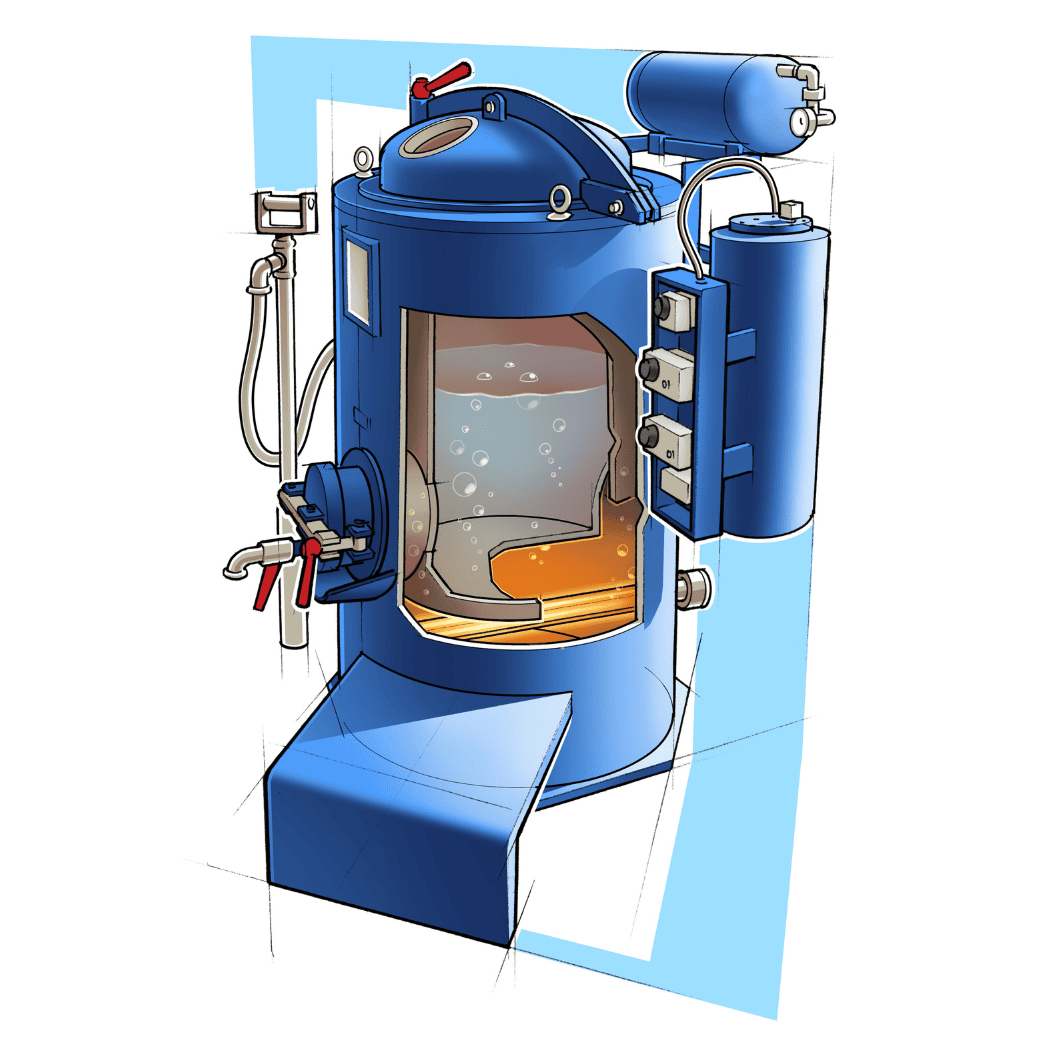

Distillation unit type DW

DW components

  • Cylindrical, vacuum-tight distillation boiler, pressure relief valve, hinged lid counterbalanced by a gas spring, viewing glass, temperature- and solvent-resistant gasket
  • Heating jacket with thermal oil as heat transfer medium, integrated Ex-de heating elements, minimum-level switch as safety against low oil level
  • Insulation of boiler, heating jacket, and lid
  • Water-cooled condenser, parts in contact with solvent are made of stainless steel
  • Temperature limiter switches off the heating if the solvent temperature exceeds a set limit
  • Cleaning hole with hinged cover for residue discharge
  • Signal lamp and EMERGENCY STOP, explosion-proof, mounted directly at the distillation unit
  • Control cabinet with control elements for installation outside the hazardous area
  • Separate control box for the pneumatic system
  • Batch distillation


Accessories

  • Vacuum unit
  • Automatic filling in connection with vacuum
  • Thermostatic valves if the unit is connected to an on-site cooling/public water supply; cooling water devices with separate circuits are also available
  • For the distillation of wash solvents: compact version for installation outside the hazardous area
