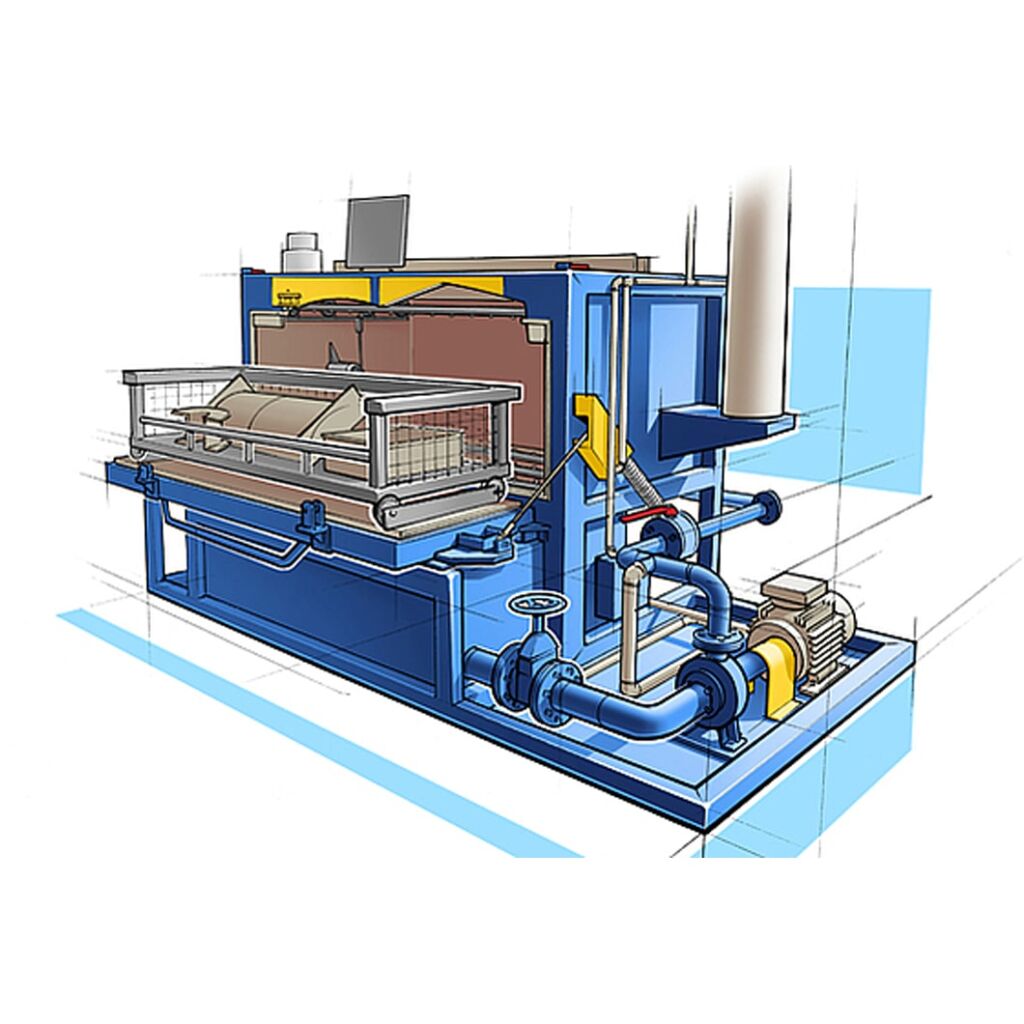

Washing machine type 3400

Type 3400

• Explosion proof device, according to ATEX, for washing printing press parts with all common solvents
• Front-loading washing machine with closed washing chamber and integrated separate solvent supply
• Operating of machine is only possible with closed lift lid
• Loading in removable strainer basket (stainless steel)
• Washing spray system with oscillating rotating spraying pipes
• Fixed spray rinsing system
• Heavy-duty washing pump/ex-motor unit
• Removable filters for the protection of the spray system, the washing pump and the tubes
• Filling level control for integrated solvent reservoir (operating level / maximum filling level)
• Inner exhaust with heavy-duty ventilator and pneumatically controlled air intake and air mix valves
• Automatic washing program; including washing – dripping – rinsing – dripping – exhaust; all program steps can be selected individually

Accessories – Type 3400

• Mobile rack for strainer basket
• Support for gravure cylinders
• Tube rinsing device
• Self cleaning device
• Pneumatically operated lid
• Solvent cooling (thermostatic valve, water cooling or heat exchanger)
• Exhaust
• Solvent content concentration control and regulator system for connection to an exhaust air puryfier

Type 3400W

see Type 3400, special features:

• Suitable for aqueous washing agents
• Non-explosion-proof, but according to ATEX
• Rinsing with water and automatic discharge of rinsing water
• Heating of aqueous agents
• Thermal insulation of machine housing
• Suitable for hot caustic


Type 3400-e

• Explosion proof device, according to ATEX, for washing printing press parts with all common solvents
• Front-loading washing machine with closed washing chamber and integrated separate solvent supply
• Operating of machine is only possible with closed lift lid
• Loading in removable strainer basket (stainless steel)
• Washing spray system with oscillating rotating spraying pipes
• Fixed spray rinsing system
• Heavy-duty washing pump/ex-motor unit
• Removable fi lters for the protection of the spray system, the washing pump and the tubes
• Filling level control for integrated solvent reservoir (operating level / maximum fi lling level)
• Inner exhaust with heavy-duty ventilator and pneumatically controlled air intake and air mix valves
• Automatic washing program; including washing – rinsing– dripping – aerating and movement of the spray pipes


Accessories – Type 3400-e

• Self cleaning device
• Automatic lock of door
• Solvent cooling (thermostatic valve, water cooling or heat exchanger)
• Exhaust
• Solvent content concentration control and regulator system for connection to an exhaust air puryfier

Datasheet Type 3400
